Processing Capacity: 120-1600 t/h
Max.Feeding Size: 480-1200 mm
Applied Material: river pebble, granite, basalt, iron ore, limestone, quartz, coal gangue, diabase, construction waste, iron ore, gold, etc.

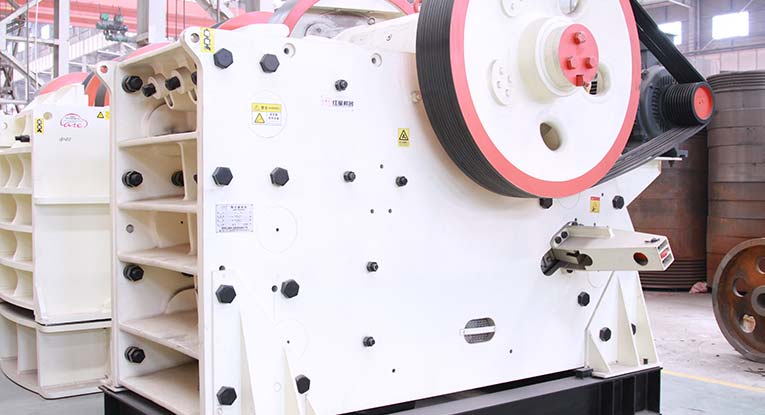

CJ series of Euro jaw crusher is a kind of jaw crusher with excellent performance, which can process 200 kinds of mineral ores, widely used in metal and non-metal, cement, construction, sand, metallurgy, and other industries. Different from the traditional one, it has higher crushing ratio, more stable operation and more advantages in transportation installation and maintenance adjustment, particularly suitable for use in fixed crushing lines and mobile crushing plants.
1.The new-toothed guard plate is used to increase efficiency and productivity.
2.The final product features uniform particle size, good grain shape, and high economic value.
3. With excellent motion parameters, the design of the main components is more precise, and the crushing effect is better.
4.It is credited with larger bearing specifications, higher bearing capacity, larger crushing force, and causes less waste generated from the crushing process.
| Model | Maximum Feeding size（mm） | Feeding opening size L×W（mm） | Adjustment range of discharge port（mm） | Capacity（t/h） | Power（KW） | Dimensions L×W×H（mm） |
| CJ96 | 480 | 930×580 | 60-175 | 105-390 | 4P 90 | 2850×2270×1950 |
| CJ106 | 560 | 1060×700 | 70-200 | 150-500 | 4P 110 | 3280×2580×2400 |
| CJ120 | 700 | 1200×870 | 70-200 | 175-610 | 4P 160 | 3700×2790×2950 |
| CJ125 | 760 | 1250×950 | 100-250 | 270-831 | 4P 160 | 4230×2780×2960 |
| CJ150 | 960 | 1400×1200 | 125-250 | 340-880 | 4P 200 | 5030×3440×3970 |
| CJ160 | 960 | 1600×1200 | 150-300 | 430-1145 | 4P 250 | 5780×3460×3580 |
| CJ200 | 1200 | 2000×1500 | 175-300 | 630-1435 | 6P 400 | 6600×4030×4400 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
