Feeding Amount: 500kg
Production Capacity: 1000-13000kg/h
Application Range: baking-free brick, sand lime brick, cement brick and refractory brick.

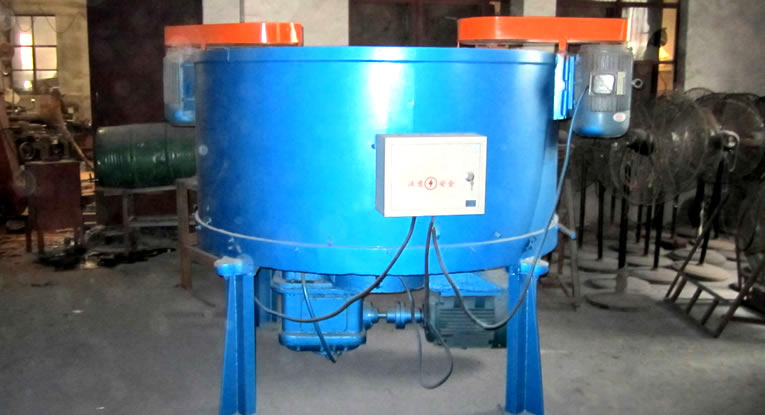

Sand Mixers is a method in which combining sand with bentonite, other solids, and water to produce a molding sand. Sand Mixers is a method in which combining sand with bentonite, other solids, and water to produce a molding sand is more complicated than simply mixing liquids or other dry combinations with each other.
The machine transmission mechanism adopts circular arc tooth spiral new technology, can make the mix mixed evenly. Cover an area of an area small, easy to install. Reducer in oil pump lubricates the gears and bearings, with low noise, easy maintenance, reliable running, flexible operation, etc.
| Feeding Ratio | Mixing Time | Productivity | Disk Diameter | Roller(Dia./W) | Total Transmission Ratio | Pressure of One Roller | Speed of Mainshast | Dimensions | Fill 30#-40# Lubricant Oil in Gear Box |
| 500kg(0.4m3) | 2-3min | 1000-13000kg/h | 1820mm | 750/240mm | 43.06 | 0-3000N | 34r/min | 2080/1882/1755mm | 10kg |
